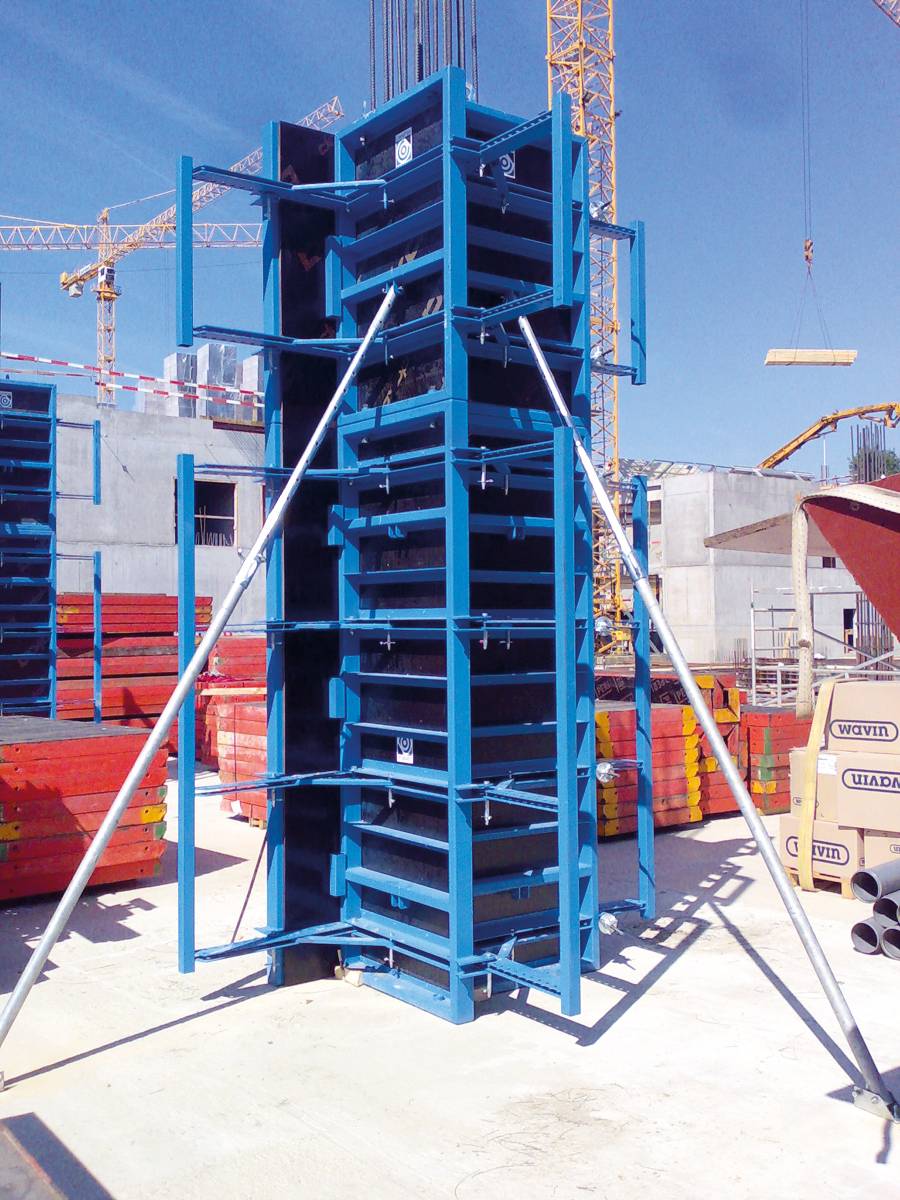

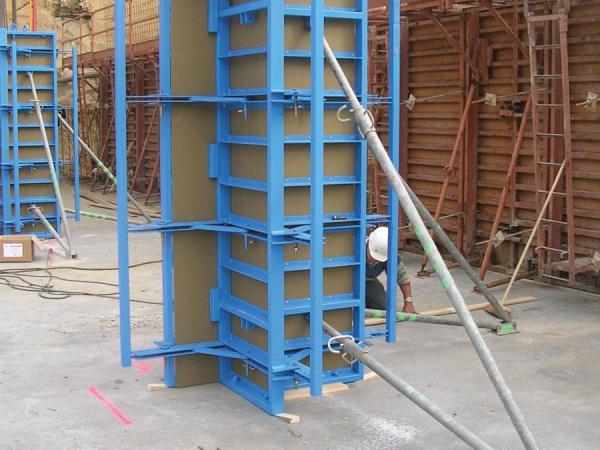

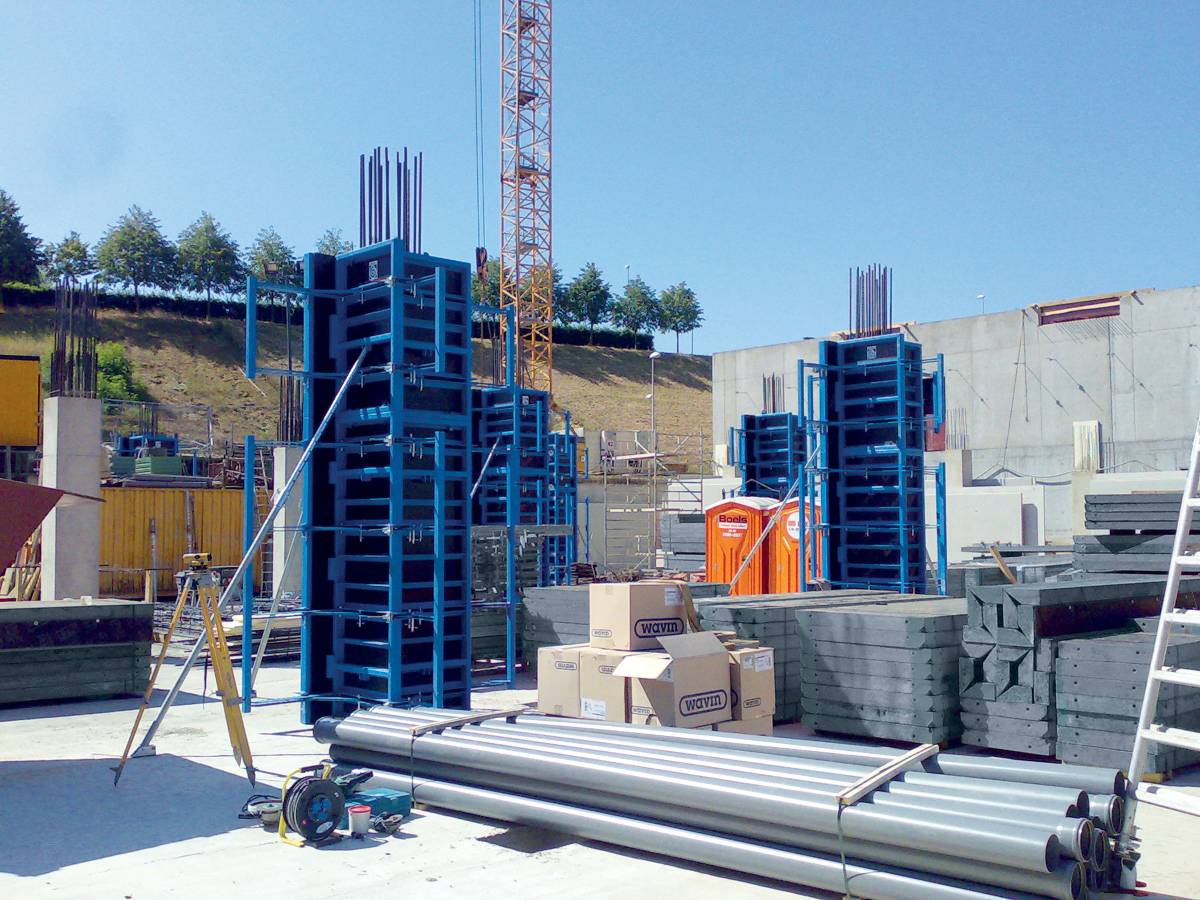

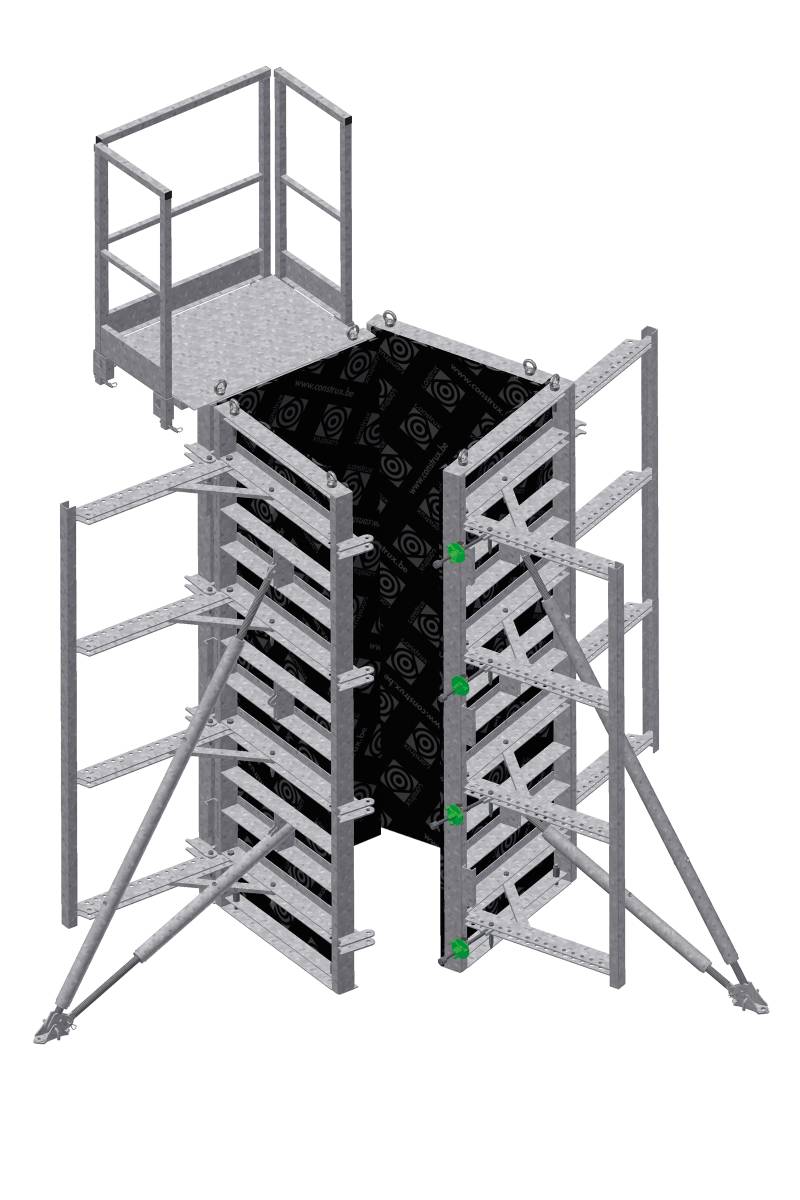

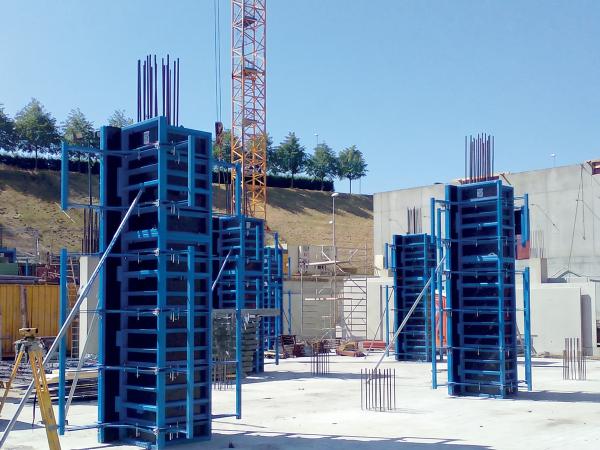

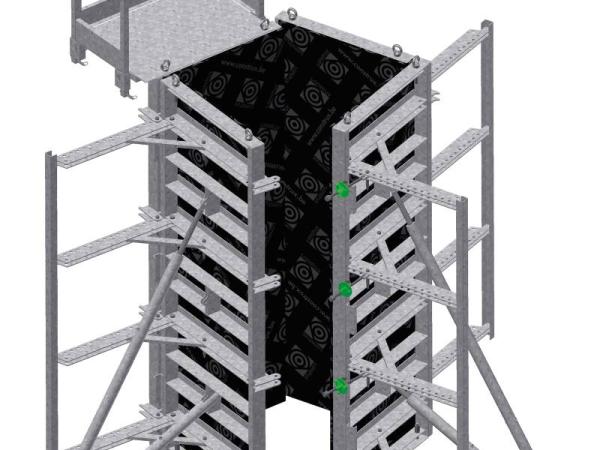

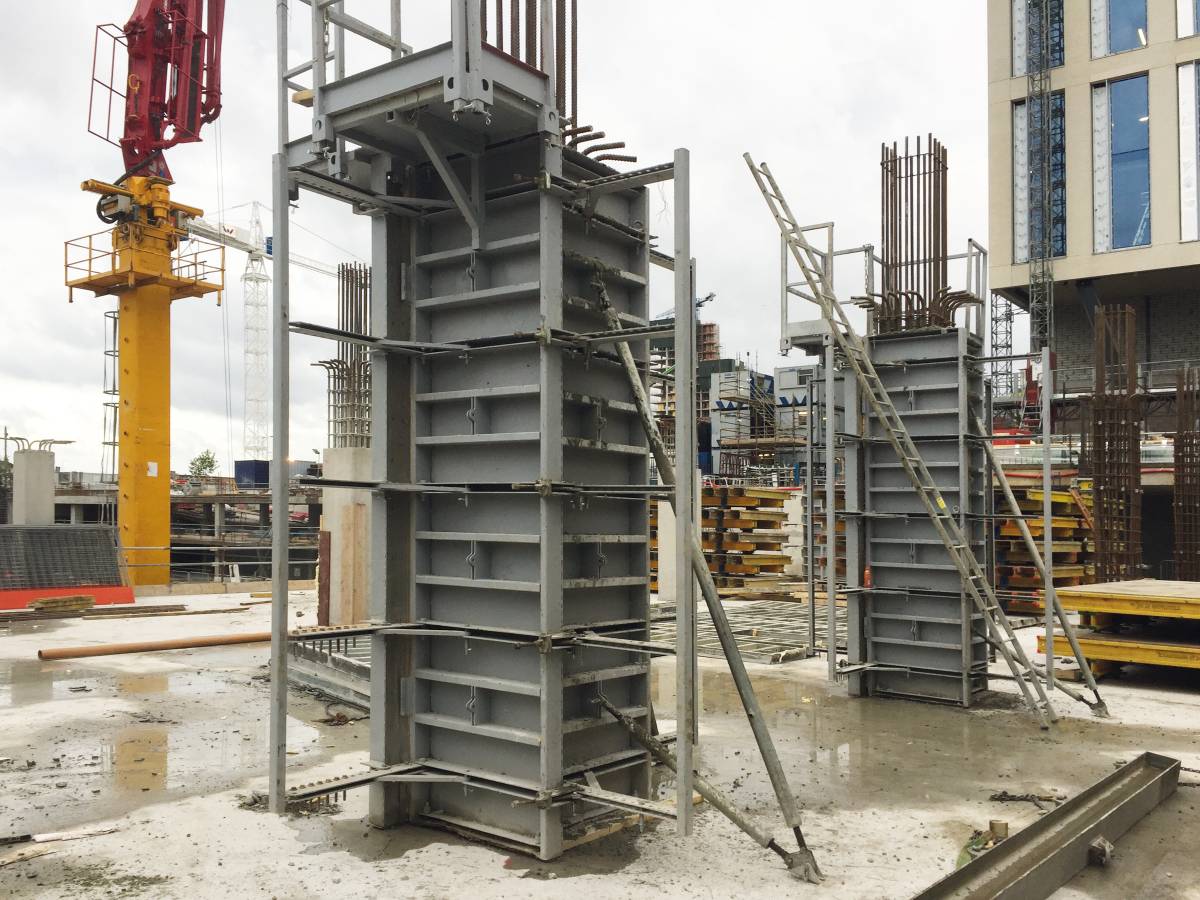

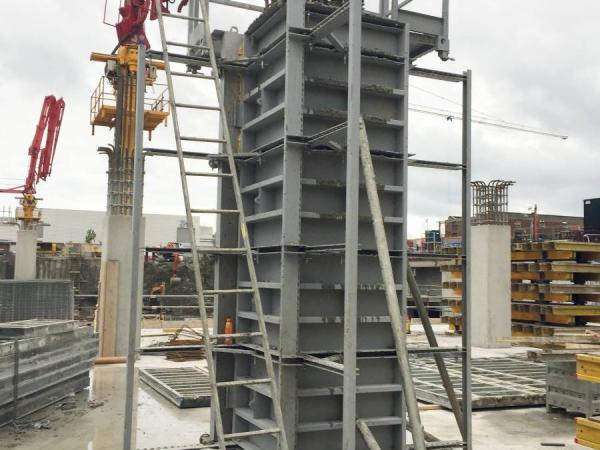

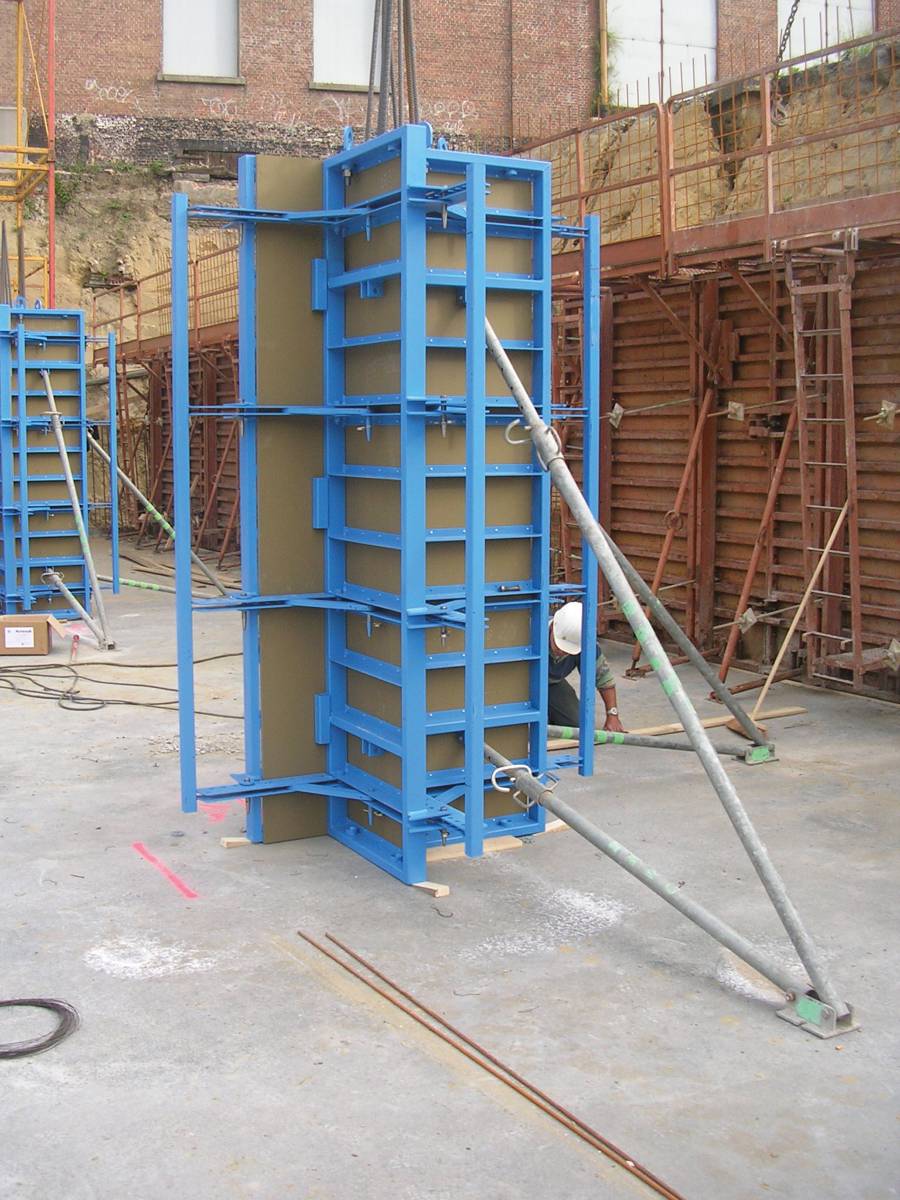

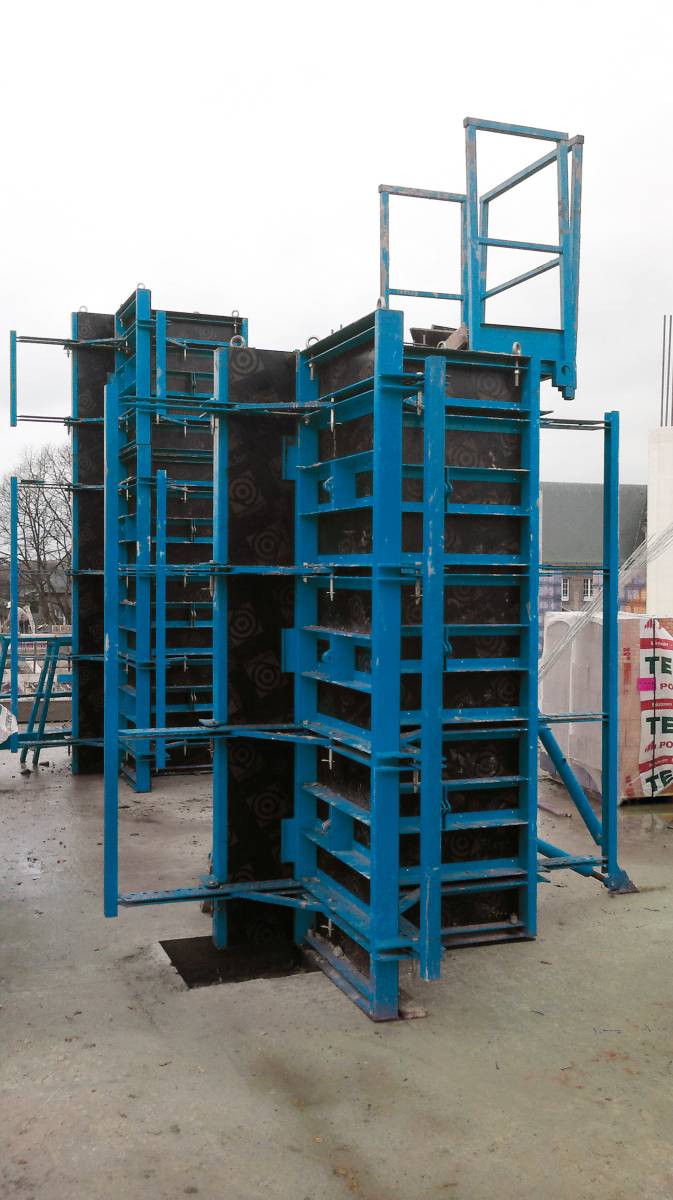

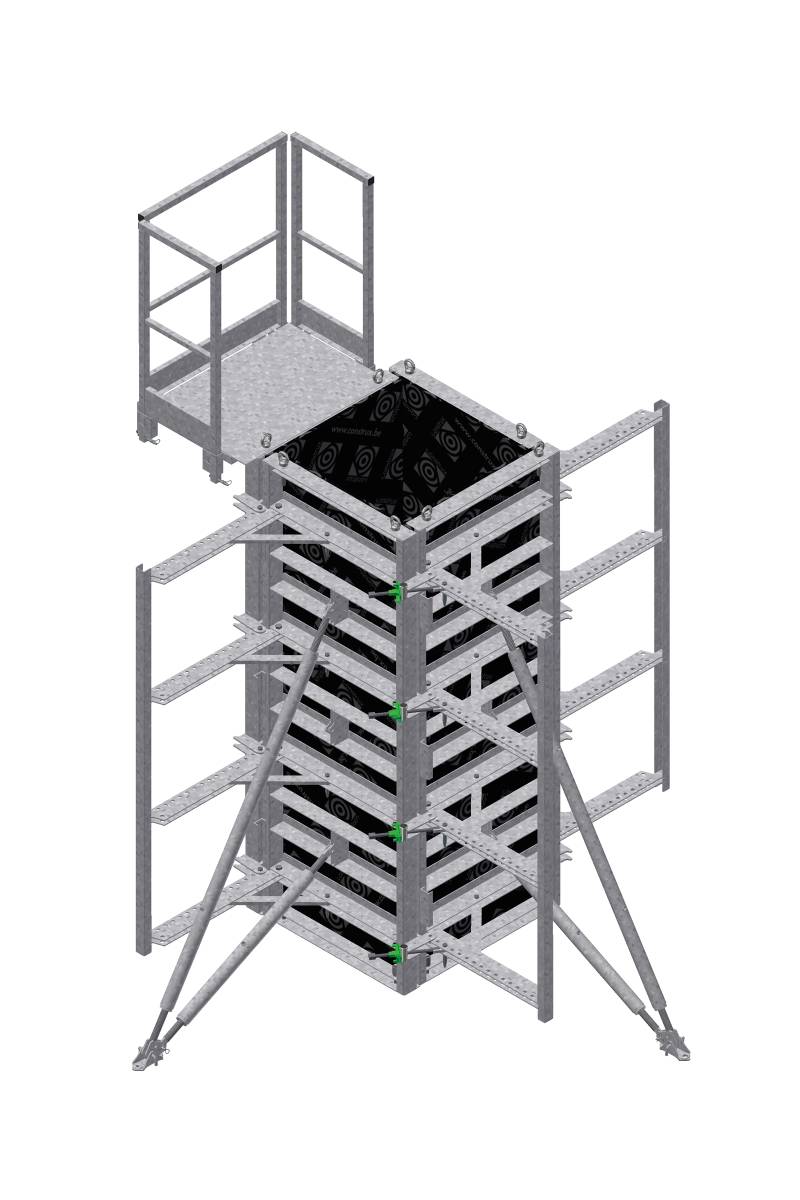

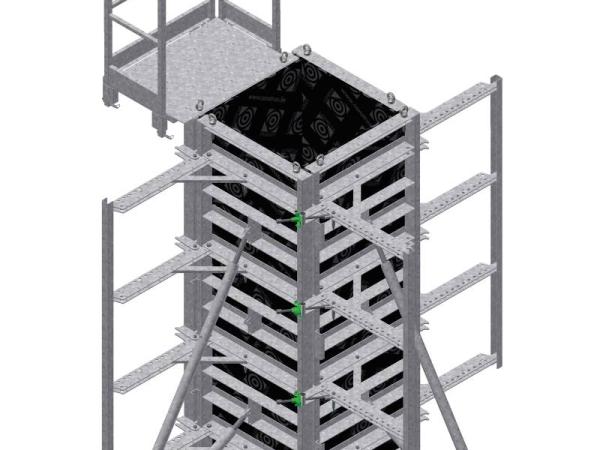

Quadri adjustable column formwork

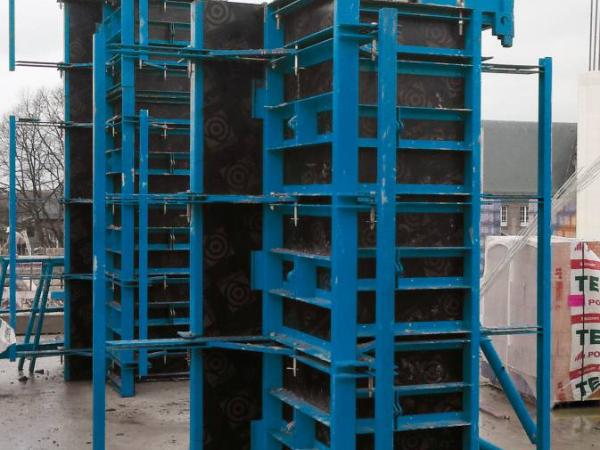

The Construx Quadri column formwork is a multifunctional hit-and-miss system for rectangular columns.

Composition of the Quadri panels:

• Galvanized and/or painted frame
• 18mm plywood with a 220g/m² phenol coating, or stainless steel sheeting
• Plywood screwed from behind

Advantages of the Quadri system:

• Rigid, solid, easy and ergonomic
• Designed and calculated according to applicable standards
• In-house production, controlled and certified

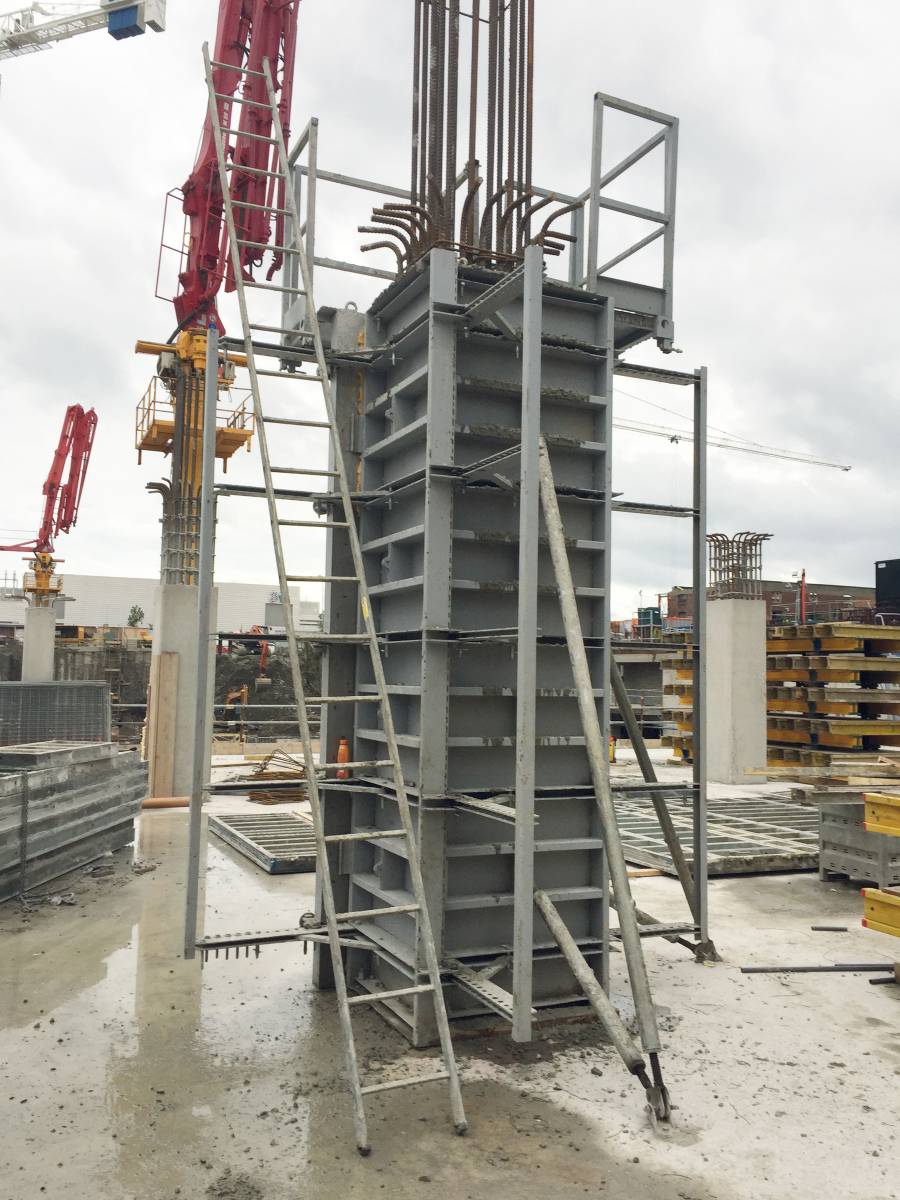

• Bespoke panels with stainless steel sheeting

The Construx Quadri adjustable column box has 5 important benefits:

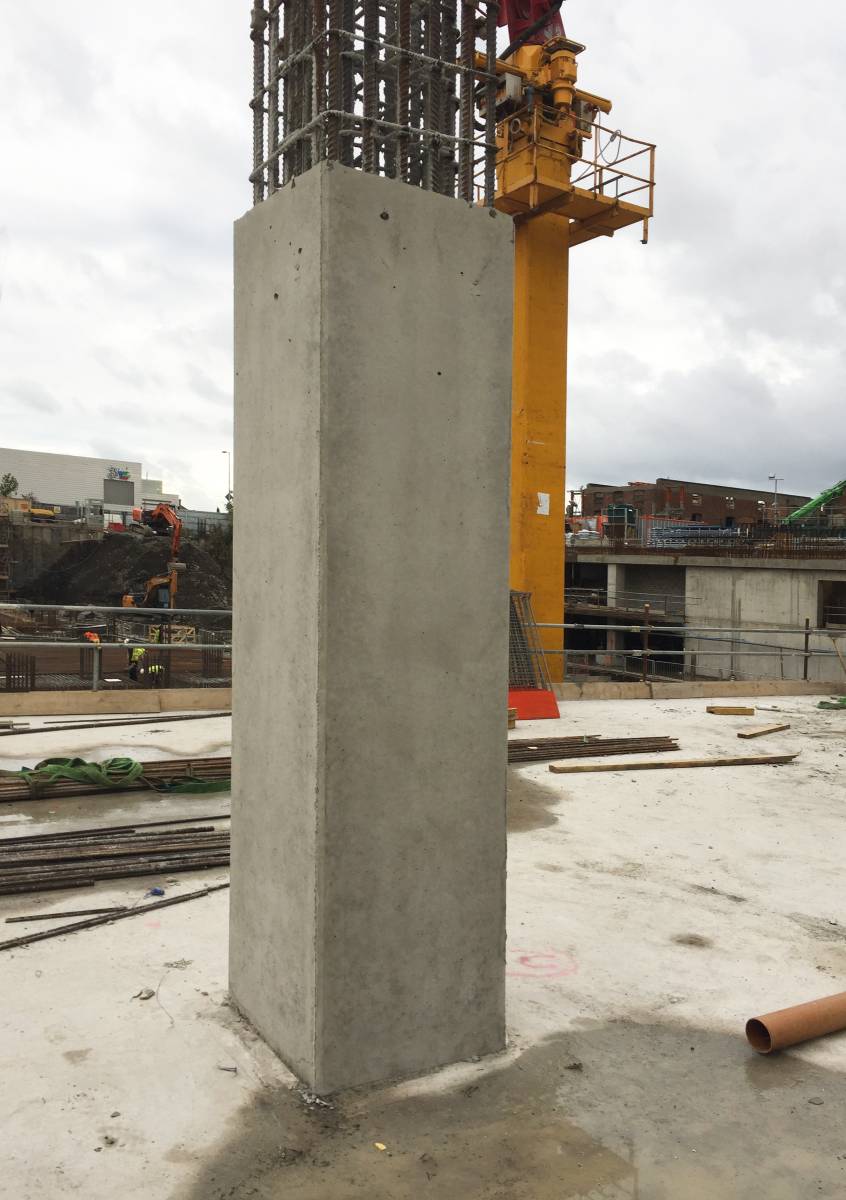

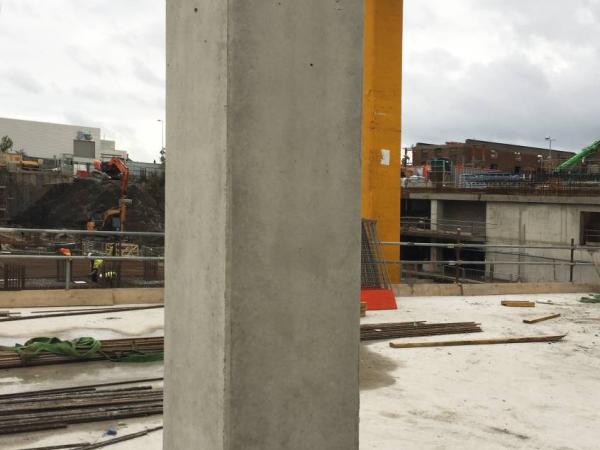

1. Fair-faced finish:
   • No ties through the concrete
   • Plywood screwed from behind
2. Handy:

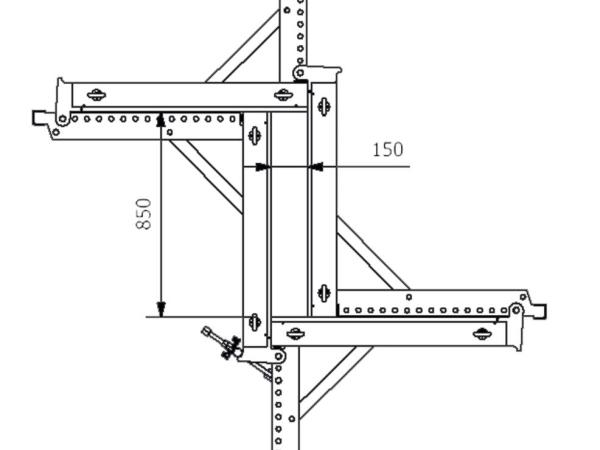

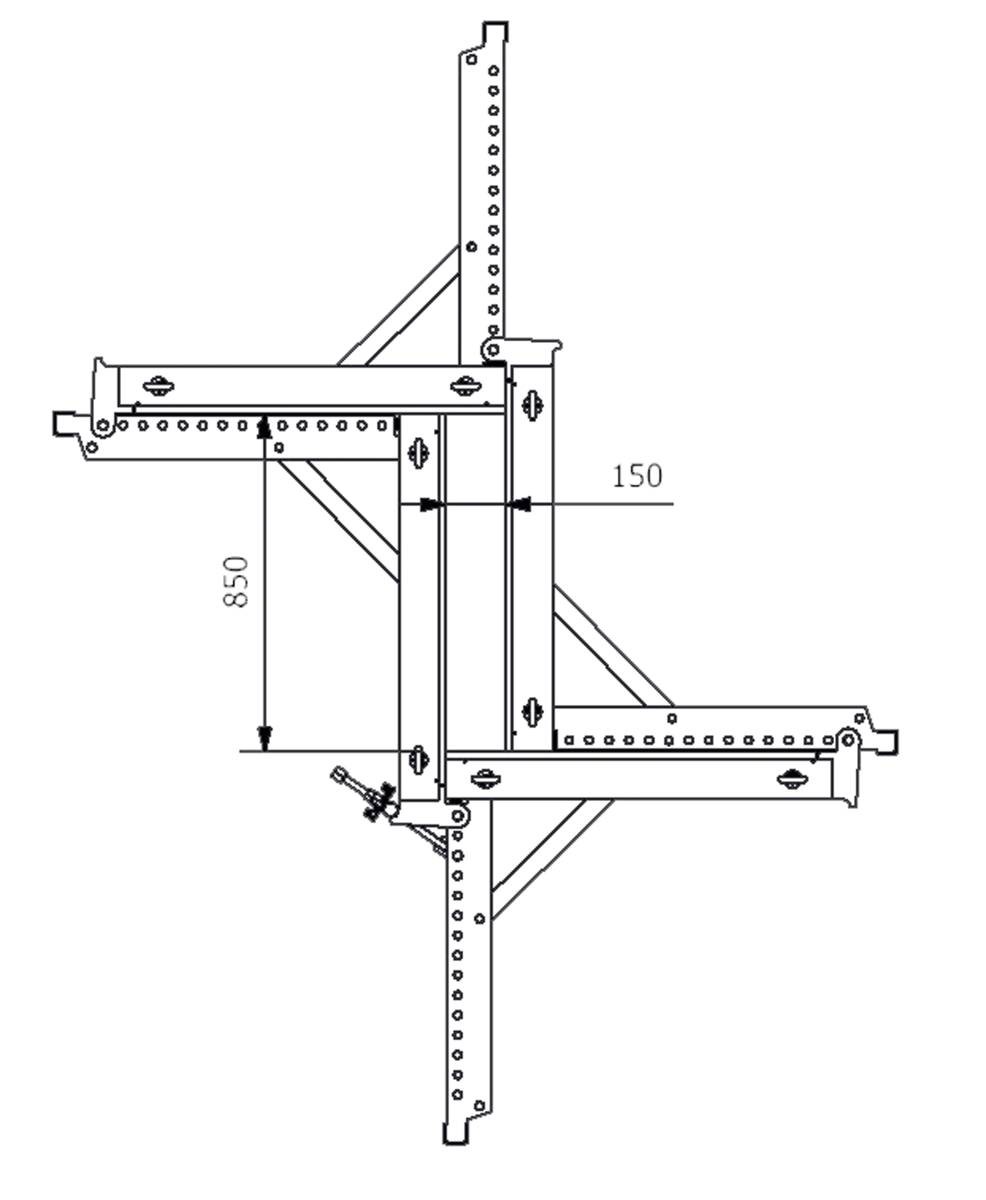

   • With the same set, column boxes can be prepared with sections from 150mm x 150mm up to 850mm x 850mm
   • Adjustable with 50mm increments
   • The heights are similar to those of the standard Tricon panels: 1200mm, 2700mm and 3300mm
   • Different column boxes can be assembled on top of each other
3. Fast:
   • All accessories are integrated in the formwork
   • A set of 4 panels can be moved on-site in one single crane lift

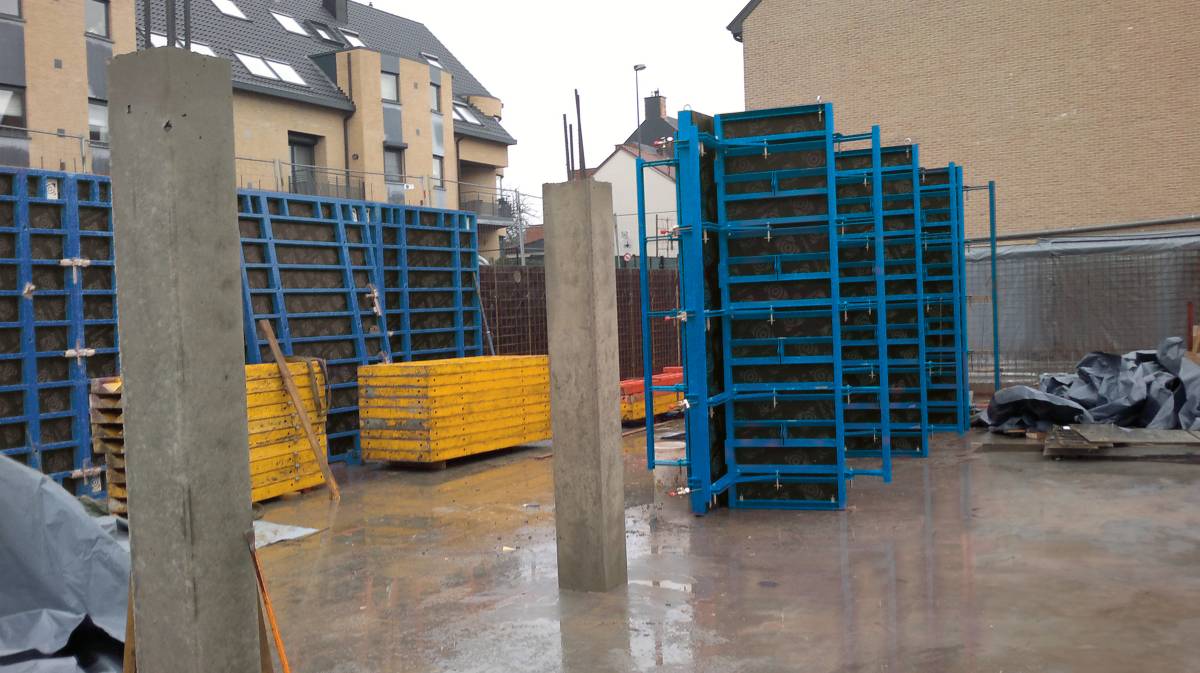

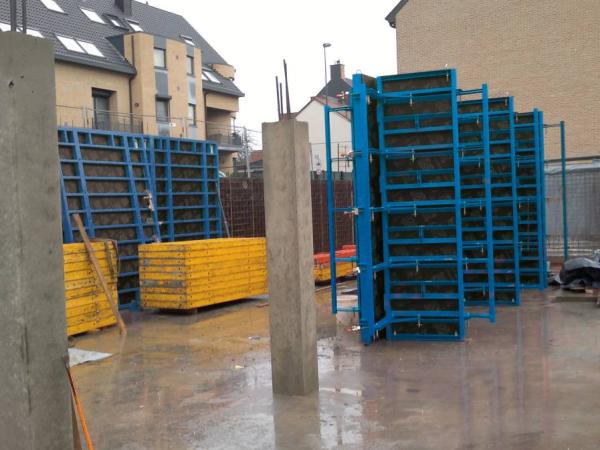

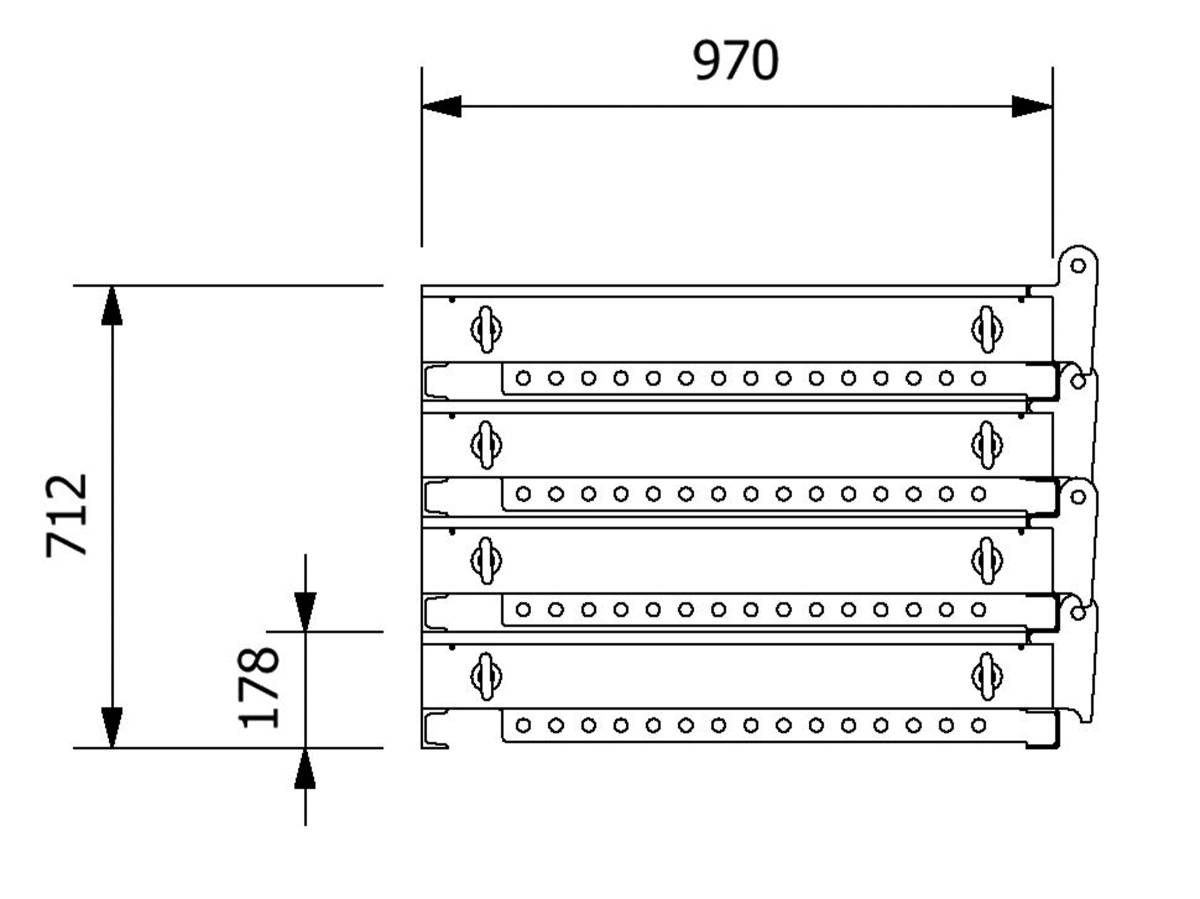

   • Stacked on a truck, a complete set takes very little space
4. Strong and sustainable:
   • Pressure resistance of more than 80kN/m²
   • Minimum deflection
   • Long life expectancy
5. Made to measure possibilities:
   • Larger sections
   • Other heights
   • Stainless steel sheeting
